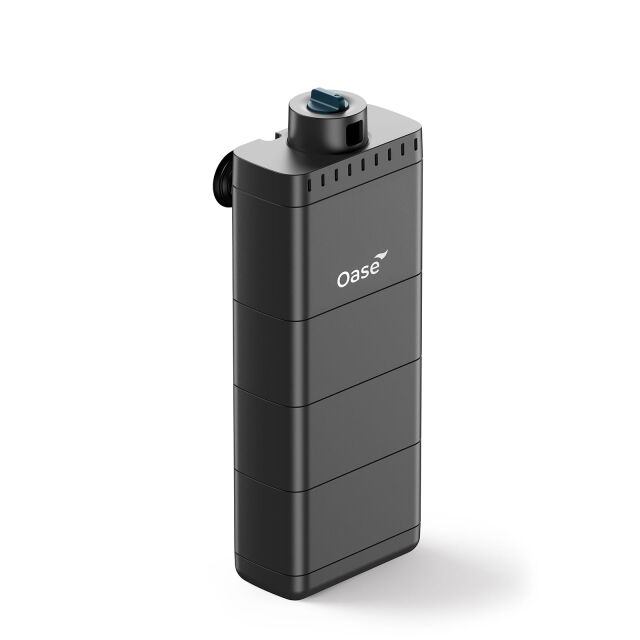

Oase EcoFlow
- Slim internal filter with chamber for biological filter media
- With venturi system for oxygen enrichment
- Includes spray bar for surface movement
- Adjustable flow rate
- Suitable for freshwater and marine aquariums
Item question
We’re here for you!
Please enter your question and e-mail and we’ll contact you as soon as possible. It usually takes us up to 24 hours during business days to respond.
Thank you for your question!
Thank you, we’ll get in touch!
Close window
You already sent us a question.
Please wait a few minutes
Description
The OASE EcoFlow is an internal filter for aquariums up to 200 liters. It features an integrated spray bar for surface movement and oxygen enrichment. The modular filter chamber can be equipped with biological filter media. The EasyClean mechanism allows quick removal of the filter chamber without detaching the pump unit. Magnetic connections simplify maintenance and ensure a secure hold during operation. A back-mounted intake and compact dimensions allow for discreet installation.
Each model includes a sponge filter, a spray bar, and a Venturi system that optionally supplies the aquarium with additional oxygen. The flow direction and rate can be adjusted individually, providing flexibility for various layout types. The internal filter is suitable for both freshwater and marine aquariums.
Features
- Internal filter for freshwater and marine aquariums
- Spray bar for surface movement and gas exchange
- Easy maintenance via magnetic EasyClean mechanism
- Separate chamber for biological filter media
- Optional oxygen supply via included Venturi system
- Flow rate and direction adjustable at the outlet
- Back-mounted intake for unobtrusive placement
Technical Data
| EcoFlow 60 | |
|---|---|
| Power consumption | 6 W |
| Voltage | 230 V / 50 Hz |
| Max. flow rate | 350 l/h |
| Filter volume | 0,26 l |
| Suitable for aquariums | up to 60 l |
| Freshwater / Marine | Yes / Yes |
| Cable length | 1,5 m |
| EcoFlow 100 | |
|---|---|
| Power consumption | 6 W |
| Voltage | 230 V / 50 Hz |
| Max. flow rate | 450 l/h |
| Filter volume | 0,39 l |
| Suitable for aquariums | up to 100 l |
| Freshwater / Marine | Yes / Yes |
| Cable length | 1,5 m |
| EcoFlow 150 | |
|---|---|
| Power consumption | 8 W |
| Voltage | 230 V / 50 Hz |
| Max. flow rate | 550 l/h |
| Filter volume | 0,52 l |
| Suitable for aquariums | up to 150 l |
| Freshwater / Marine | Yes / Yes |
| Cable length | 1,5 m |
| EcoFlow 200 | |
|---|---|
| Power consumption | 8 W |
| Voltage | 230 V / 50 Hz |
| Max. flow rate | 650 l/h |
| Filter volume | 0,65 l |
| Suitable for aquariums | up to 200 l |
| Freshwater / Marine | Yes / Yes |
| Cable length | 1,5 m |
Dimensions
| EcoFlow 60 | |
|---|---|
| Length | 95 mm |
| Width | 50 mm |
| Height | 101 mm |
| Weight | 0,50 kg |
| EcoFlow 100 | |
|---|---|
| Length | 95 mm |
| Width | 50 mm |
| Height | 146 mm |
| Weight | 0,55 kg |
| EcoFlow 150 | |
|---|---|
| Length | 95 mm |
| Width | 50 mm |
| Height | 191 mm |
| Weight | 0,60 kg |
| EcoFlow 200 | |
|---|---|
| Length | 95 mm |
| Width | 50 mm |
| Height | 236 mm |
| Weight | 0,65 kg |
Scope of Delivery
- OASE EcoFlow internal filter (model-specific)
- Pre-installed sponge filter
- Spray bar
- Venturi system
- Mounting accessories
- Instruction manual
Product safety
Beware of electricity
Warning notes:
- Disconnect all electrical devices in the water from the power supply before reaching into the water. Otherwise, there is a risk of severe injury or death by electric shock.
- This unit may be used by children aged 3 and above, as well as by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, only if they are supervised or have been instructed on safe use and understand the risks involved. Do not allow children to play with the unit.
- Do not use the unit if electrical lines or the housing are damaged.
- The supply cord cannot be replaced. If the cord is damaged, the appliance must be discarded.
- Never pull on electric cables or carry the unit by its cable.
- Only perform work on the unit that is described in this manual.
General notes:
- Only operate the unit if the electrical data of the unit and the power supply match.
- Only plug the unit into a properly installed outlet.
- Route cables in such a way that they are protected from damage and do not present a tripping hazard.
- Do not make technical modifications to the unit.
- Only use original spare parts and accessories.
Handling notes:
- If problems occur, please contact authorised customer service or OASE.
Oase
Founded in 1949, the traditional German company Oase from Hörstel in Germany is passionate about developing and selling professional equipment for all aspects of water. Filters, pumps, water conditioners, complete aquariums as well as fish food and accessories for aquaristics are part of the product range. With the biOrb product line, decorative and technically advanced all-in-one terrariums including accessories are also part of the portfolio. In addition, Oase is very successful worldwide in the garden, pond and waterworks sectors and, with Oase Professional, also offers solutions for hydraulic engineering, fountain technology and pond management.
Manufacturer information
| Manufacturer | |
|---|---|
| Name | OASE GmbH |
| Street | Tecklenburger Straße 161 |
| City | 48477 Hörstel |
| State | Nordrhein-Westfalen |
| Country | Deutschland |
| [email protected] | |
| Website | www.oase.com/de-de |
General information
| Item no. |
|
| EAN | 198318000192 |
| Weight | 0,93 kg |
| Shipping weight | 0,99 kg |
